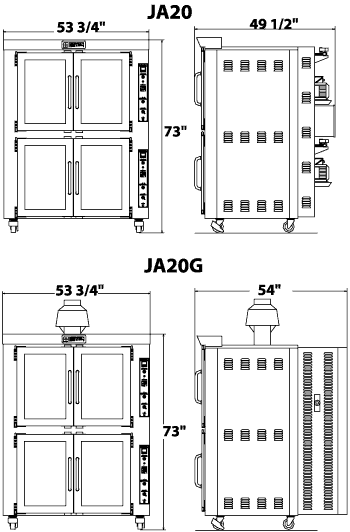

OVERALL
DIMENSIONS
53 3/4" W X 73" H X49 1/2"
D(electric)
(137cm) (185 cm) (126cm)
53 3/4'' W X 73"H X 54"D (gas)
(137cm) (185cm) (137cm)
OVEN INTERIOR DIMENSIONS
39 1/2" W X 26 1/2"H X 31"D
(100 cm) (67 cm) (79 cm)
39 1/2'' W X 26 1/2"H X 30"D (gas)
(100cm) (67cm) (76cm)
Shelf spacing 3 3/4" (10 cm)
GAS SYSTEM (JA20G - Propane
or natural)
BTU: 130,000 (65 000 by oven)
3 phases:
120/208V - 10A - 2kW - 4 wires - 60 Hz
120/240V - 10A - 3kW - 4 wires -60 Hz
1 phase:
120/240V - 11.5A - 2kW - 3 wires - 60 Hz
gas inlet : 1/2" NPT
ELECTRICAL SYSTEM (JA20)
3 phases:
120/208V - 75A - 27kW - 4 wires - 60 Hz
220/380V - 28A - 18.4kW - 4 wires - 50 Hz
120/240V - 65A - 27kW - 4 wires - 60 Hz
water inlet : 1/4" NPT
OVEN CAPACITY TOTAL
Standard sheet pans 18" x 26" (46
cm x 66 cm): 20 pans
Five-strapped bread pans: 100 loaves
Four-strapped bread pans: 80 loaves
9" (23 cm) pies: 120 pies
FINISH
Exterior: All stainless steel (18 gauge)
Interior: All stainless steel (16 gauge)
SHIPPING INFORMATION
1375 lbs (624 kg) approximately (electric)
1525 lbs (692 kg) approximately (gas)
Electrical service connection and water
inlet are located at the back of the unit.
Specifications and design subject to change
without notice.
|
 |
